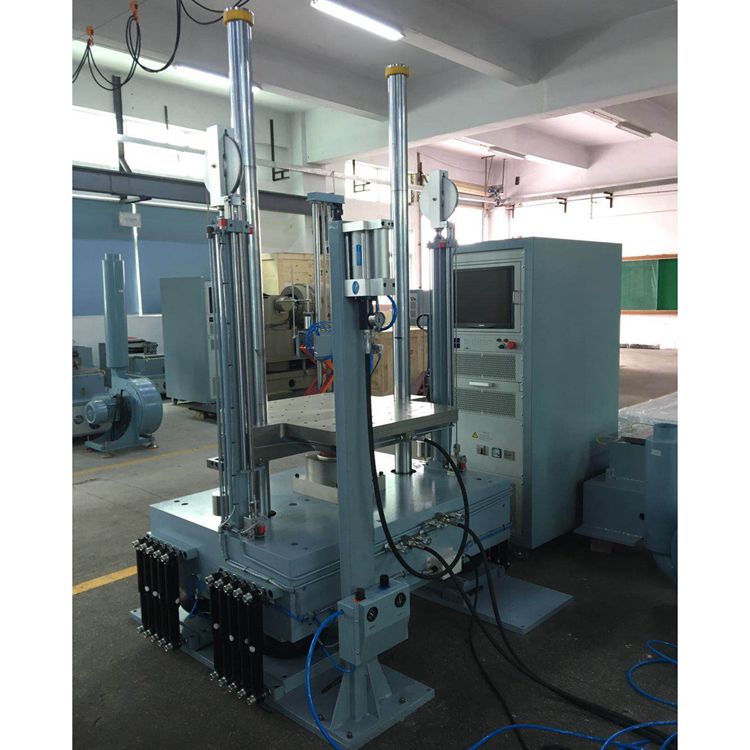

Products are inevitably affected by impact, bump, free fall, tumbling, etc during production, transportation , loading and unloading as well as during the use of the products. All of these are transient excitation in the object, causing the object to produce mechanical characteristics of high speed, acceleration, strain rate. It is completely different from objects in static load which cause problem to the object in terms of structural strength and stability and sometimes the object may fail. Therefore, it is necessary to study the effect of impact and reproduce the shock environment, to assess the strength and performance of the object under shock environment.
■The Application of Shock Test
Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. Regardless whether you want to do a boundary assessment on complete product breakage. Industrial shock piles or company’s internal standards, we can provide the most advanced shock test system to meet your application requirements.
Suitable shock test for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.
By selecting different waveform generator, can perform: half sinusoidal wave, trapezoidal wave.

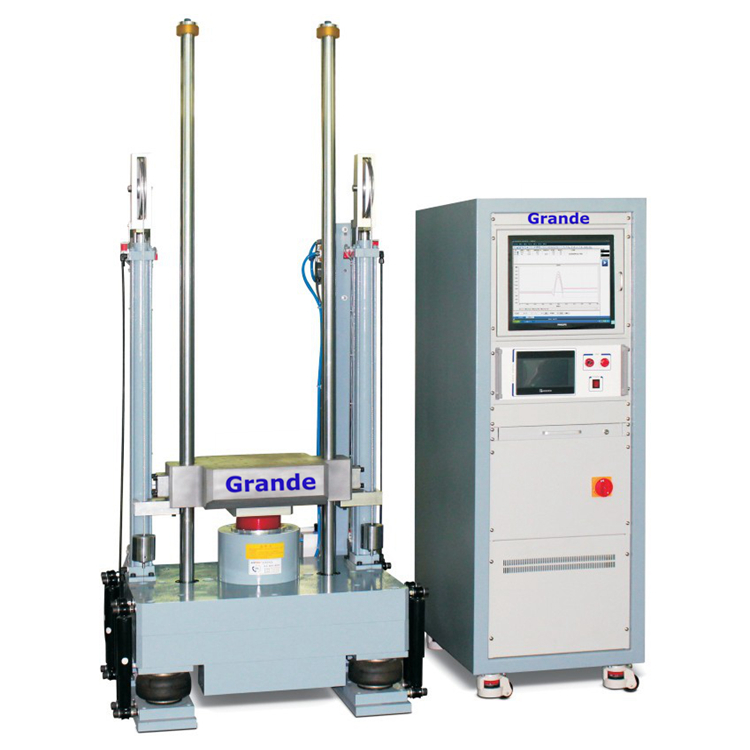

■Features
●Convenient touch screen operation;
●Complete safety protection system;
●Utilize pneumohydraulic booster and braking system to prevent multiple impact;
●With air spring shock absorber and hydraulic shock damping mechanism, there will be on influence of impact on surrounding andno foundation requirement.
| Model | GSKT30 | GSKT50 | GSKT100 | GSKT200 | GSKT300 | GSKT600 | GSKT1000 | ||
| Table Size(cm) | 40×40 | 50×60 | 701×80 | 100×100 | 120×120 | 150×150 | 200×200 | ||
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | ||
| Max. Acceleration(G) | Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Square | - | 150 | 150 | 150 | 100 | 100 | 100 | ||
| Pulse duration(ms) | Half Sine | 30~0.5 | 30~1 | 30~1 | 30~2 | 20~3 | 20~3 | 20~3 | |
| Saw-tooth | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | ||
| Square | - | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | ||
| Machine dimension(cm) | 120×105×245 | 120×105×245 | 130×120×260 | 150×130×260 | 200×160×300 | 230×180×310 | 250×250×310 | ||
| Controller cabinet dimension | W55×D50×H80 | ||||||||
| Machine weight(Kg) | 1900 | 2000 | 3200 | 4200 | 8500 | 15500 | 21500 | ||
| Power supply | 3ФAC380V 50/60Hz Compressed air 0.5~0.8MPa | ||||||||
| Standards | GB/T2423-2008 GJB1217GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||||||
