Not all testing applications fit the mold of a standard frame. Our team of highly-skilled and experienced engineers design and produce solutions to your specific requirements. No matter what you need, you will find that we have the experience and resources to create the perfect engineered solution.
Customized frames that are tall,short,wide or narrow.

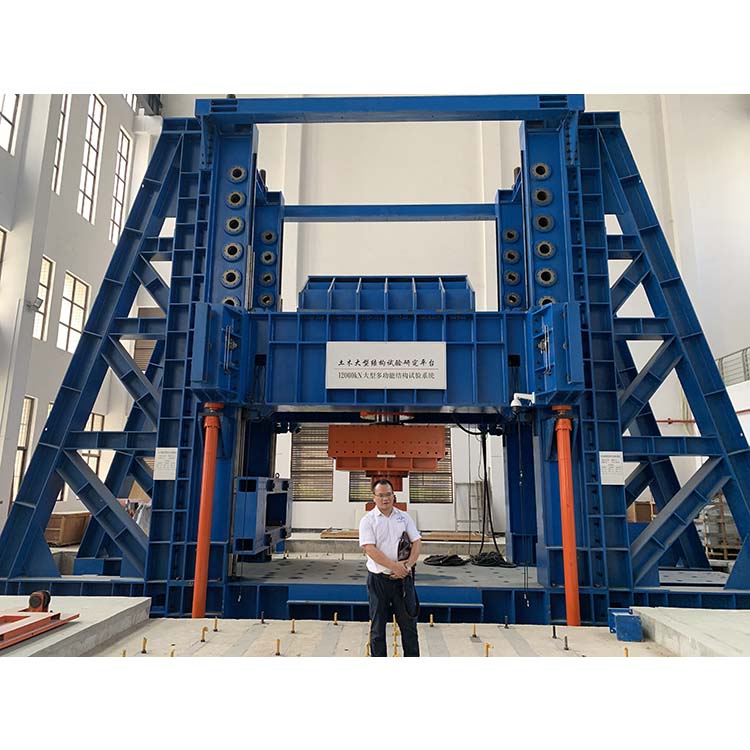

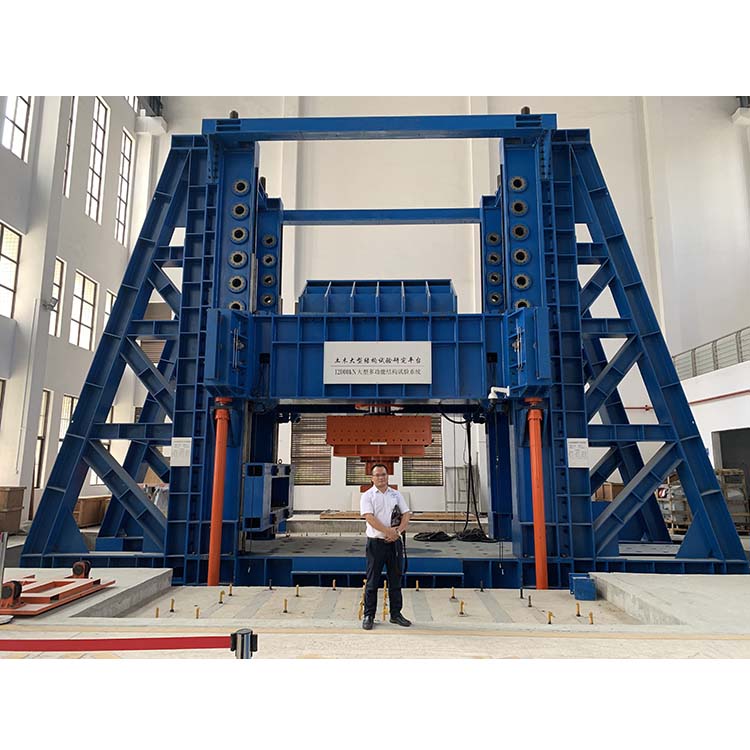

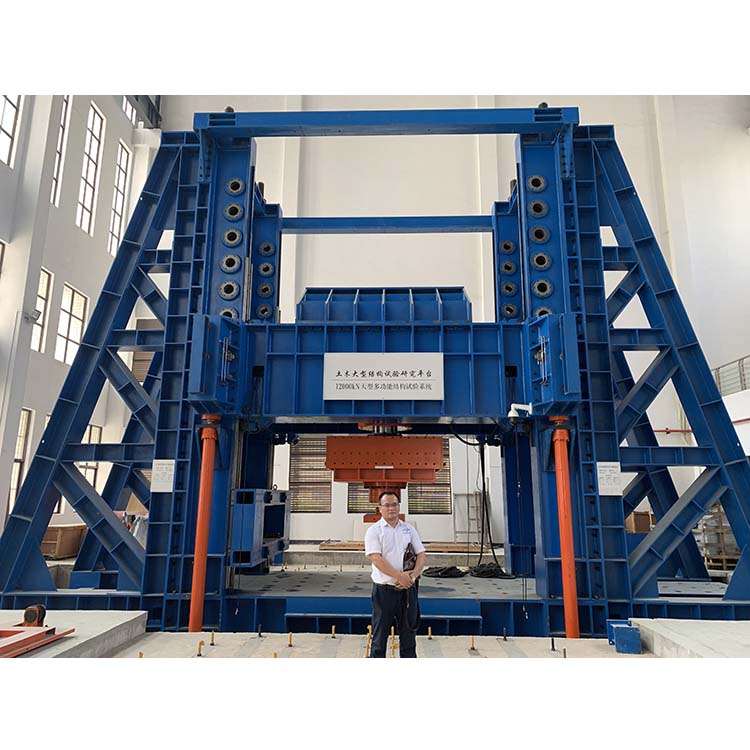

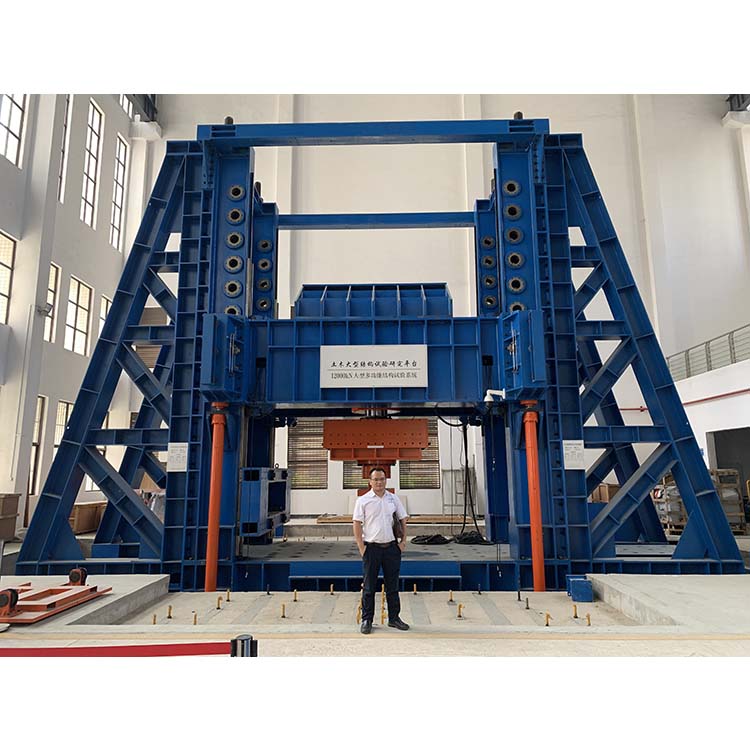

The Custom Solutions group at GRANDE has been developing custom sized frames to meet our customers’ unique needs for decades. We have made frames tall and wide enough to fit industrial crates, concrete components and transmission pipeline. Whether you’re a new or current customer, we will work diligently to understand your goals and ensure they are met or exceeded. Please browse the gallery above to see some of our recent projects.
Custom Safety
Customized solutions for shield,light curtains and mats.
The Custom Solutions group at GRANDE has been developing unique safety solutions to meet our customers’ unique needs for decades. Safety is the most important aspect in labs across the globe and we can help yours be as safe as possible. Whether your shield, light curtain, etc. is being purchased with a new frame or being used with your current set-up, we will work diligently to understand your goals and ensure they are met or exceeded. Please browse the gallery above to see some of our recent projects.
Custom High Speed Frames
The Custom Solutions group at GRANDE has been developing unique frames to meet our customers’ unique needs for decades. Perfect for highly malleable materials, a high speed frame is able to keep up with your specimen. No matter how fast you need your frame to move, we will work diligently to understand your goals and ensure they are met or exceeded. Please browse the gallery above to see some of our recent projects.
Curved Needle G900 Test Systems
The Grande Curved Needle Testing System is built on the G900 system platform and is ideally suited for needles used in abdominal, fistula, vascular, intestinal, or other surgical procedures. This system provides two different needle testing solutions: one for curved needle puncture testing and one for bend testing. The curved needle puncture testing fixture is used to evaluate needle sharpness and insertion force, while the needle bend testing fixture is used to evaluate flexural properties of the needle during use. With its tabletop design, the Curved Needle Testing System has a small footprint and takes up minimal bench-top space. The testing system operates with Instron
Grande software that provides test control, data acquisition, test results, and reports, as well as a large library of calculations.
Specifications:
· Maximum Angular Displacement: 140°
· Angular Displacement Resolution: 0.015°
· Minimum Angular Velocity: 0.06 °/sec
· Maximum Angular Velocity: 100 °/sec
· Needle Size: R2.44 – R32.3 (radius)
· Needle Gauge: 0.44 – 1.13 mm
· Electrical Requirements: Single Phase, 47/63 Hz, 120 or 220 VAC
· Operating Temperature: +10 to 38°C or +50 to 150°F
· Software: GRANDETOP
Automation
The Custom Solutions group is responsible for developing our automation systems. Built to increase safety and throughput while reducing variability and repetitive tasks, our automated systems are available as a turnkey solution or fitted to the Instron you already have. Our automation solutions are customized for your unique needs whatever your material or requirements.
Our Systems:
G1 Carousel Testing System for Flexible Materials
G2 XY Stage
G3 3-Axis Non-Robotic Testing System
G6 Robotic Arm Testing System
Learn more about our automation systems.
System Upgrades
System upgrades are designed to extend the life of your existing test system by providing critical updates. The Grande program aims to mitigate risks to your testing process by replacing obsolete components with current hardware, software, and electronics from Instron’s G900 series test systems.
